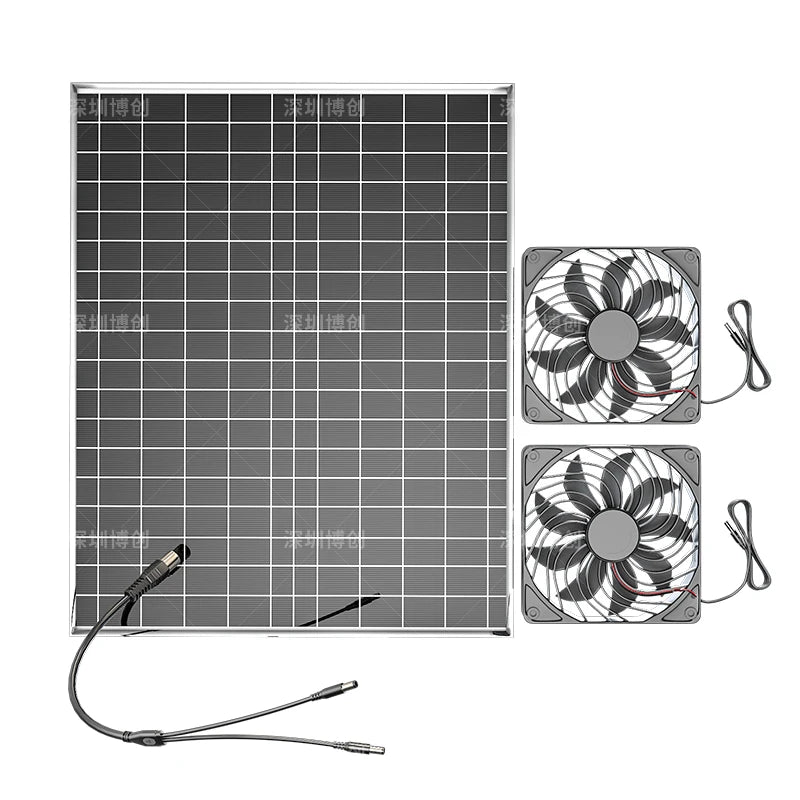

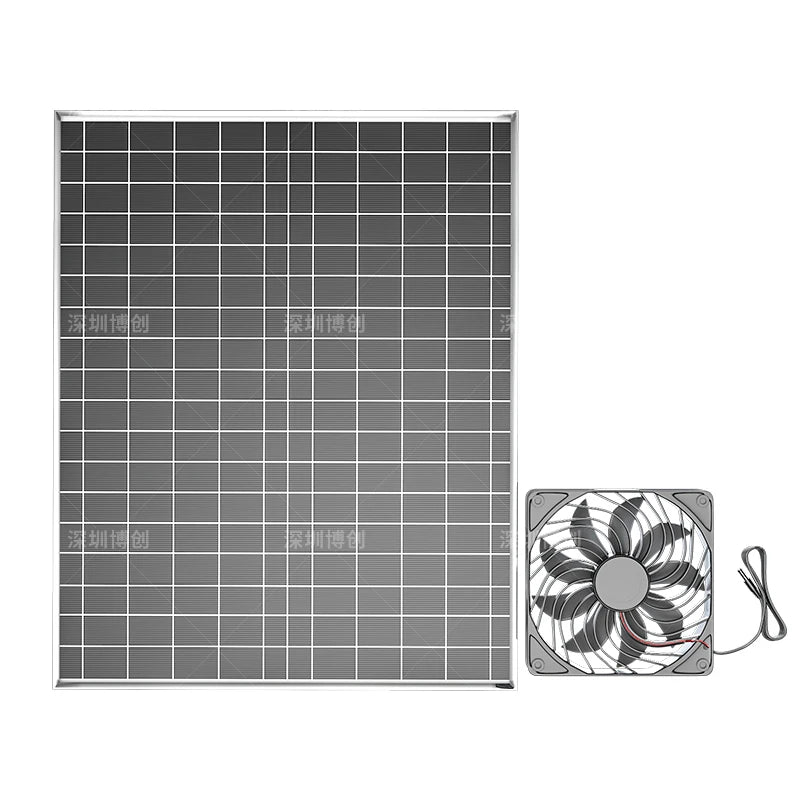

500W Solar Powered Fan Portable Rechargeable Battery Operated Fan with Panel USB Charging for Outdoor Camping Travel Home

500W Solar Powered Fan Portable Rechargeable Battery Operated Fan with Panel USB Charging for Outdoor Camping Travel Home

Maximum power(Pmax) ——500W

Output tolerance ——± 3%

Maximum system voltage——500V DC

Open circuit voltage(Voc)——18V

Short circuit current(Isc)——2A

Maximum power voltage(Vmp)——12V

Maximum power current(Imp)——1.6A

Cell efficiency ——23%

Operating temperature（NOCT）——45±2℃

Temperature range——-40℃～+85℃

Cell——Polycrystalline silicon

Number of cells——36pcs

Weight——0.8Kg

Size——390mm*330mm*15mm

Waterproof ——Yes

Standard Test Conditions——lrradiance 1000w/m^2，Temperature 25℃, AM=1.5

Notes for use:

1.This product must not come into contact with highly corrosive substances.

2.It is strictly forbidden to modify, disassemble, drop, and hit the junction box and products by yourself, avoid stepping on the surface and scratching the surface with hard objects during use.

3.A large number of scratches or dirt on the surface of the solar panel may cause the solar cell module to be inefficient, and in severe cases may cause burnout.

4.The suitable ambient temperature range of this product: -20 ° C-80 ° C, please do not exceed this range.

5.The solar panel must be installed in an area with good sunlight and no shadow. The long-term work of the solar cell module in the sun with shadow may have the risk of burning.

6. The total power of photovoltaic modules must be less than the rated power (rated voltage) of the controller × Rated current). Overloading of the controller is strictly prohibited.

7.The total voltage of the photovoltaic module connected to the controller must be within the range of the photovoltaic input voltage of the controller.

8. The controller needs to be connected to a battery in order to function.
